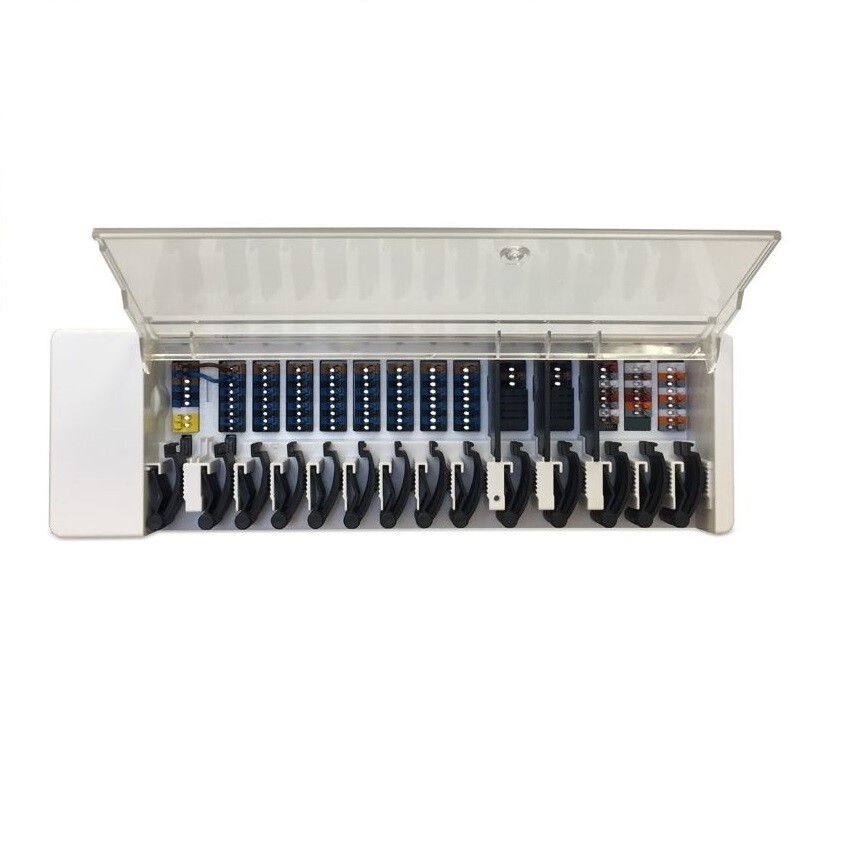

Controller for Surface Heating Systems (Heating Only)
Controller for Surface Heating Systems
- Universal voltage range 100-240VAC
- 8 x Relay outputs 230VAC on/off for the actuator of up to 8 heating zones (with up to 4 actuator per zone)
- 1 x Relay output 230VAC for the circuit pump
- 1 x Volt free relay outputs for additional functions such as heating request or error message
- 2 x 0-10V/PWM outputs &
- 1 x PWM output for additional functions (actuator for weather-compensated circuit, modulated heating request or speed-controlled high-efficiency pumps
- 24VDC power supply and CAN network connection for up to 8 °CALEON room controllers
- 1-Wire Bus network for up to 20 additional temperature or temperature/humidity sensors
- 2nd independent CAN network for the building
- Intuitive programming by °CALEON
- 13 LEDs for system status
- RTC Real Time Clock with >24h power reserve
- White housing RAL9003 with clear cover plate, dimension 90mm x 300mm x 57mm protection class IP20
- Mounting material incl DIN rail
- Substitute fuses and instruction manual
-
74001q
-
300cm x 57cm x 90cm 300.000cm x 57.000cm x 90.000cm
-
0kg
-
Caleon Box
-
Yes
