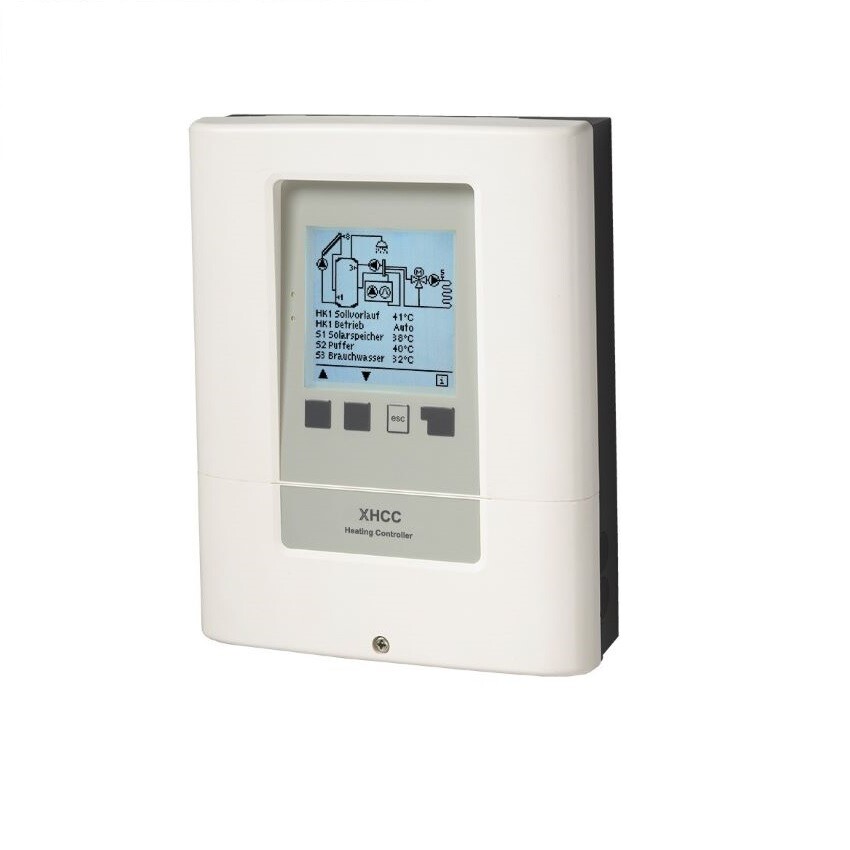

XHCC Heating Controller (excl. Ethernet)
XHCC Heating Controller (without Ethernet)
- Program-version for weather-controlled heating systems with additional functions for unused relays
- Universal voltage range 100-240VAC
- 9 Sensor input for Pt1000 temp sensors
- 2 Sockets for VFS or RPS sensors
- 2 Sockets for CAN interface
- 2 Sockets for RC21 room thermostat
- 1 Slot for micro SD including 4GB card
- 6 Relay outputs 230VAC on/off for pumps / valves
- 1 Relay output 230VAC potential free on/off
- 4 PWM outputs 2 of them switchable to 0...10V for speed control of high-efficiency pumps, actuators or modulating energy sources
- Intuitive operator guidance via 4 input keys
- Full-text menu with explanatory texts and graphic mode with animations
- Menu in different languages: DE, EN, ES, IT...
- High-contrast lighted display with 128 x 128 dots
- Function check and graphical system analysis with long-term memory for statistics about heat quantity and operating hours
- RTC Real Time Clock with >24h power reserve
- White housing RAL9003, protection class IP40, (dimensions H 228mm x W 180mm x D 53mm)
- Mounting material, substitute fuse and manual
-
SO28001b
-
0cm x 0cm x 0cm 0.000cm x 0.000cm x 0.000cm
-
0kg
-
Differential Controller
-
Analog
-
Via Data Logger
No files found for this product.
