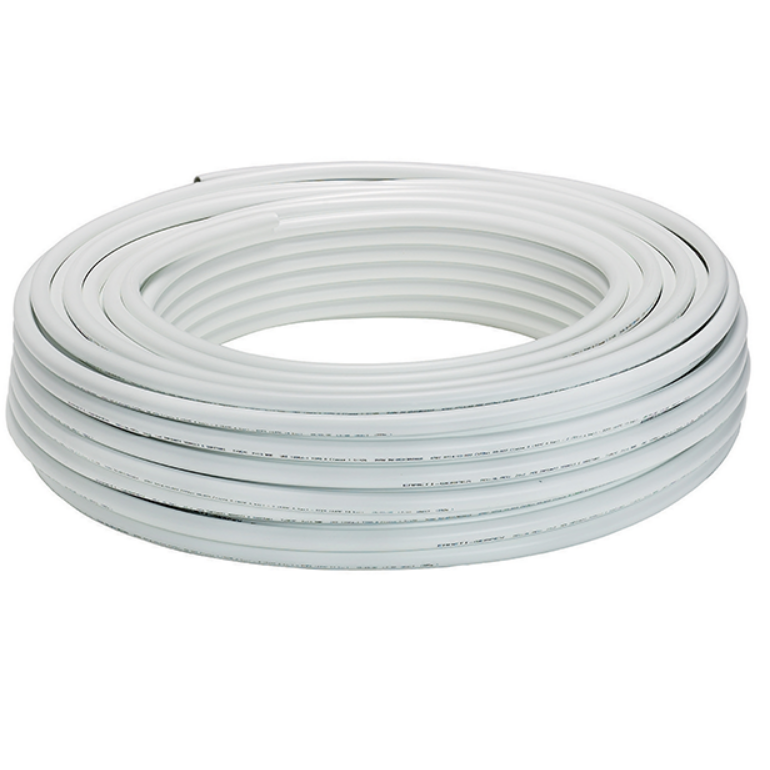

Our multilayer PE-RT/AL/PE-RT pipe is specifically designed with Heating Systems in mind, although it is just as effective in domestic applications. With a 70°C operational and a 95°C spike temperature, these pipes are perfect for both underfloor heating and domestic hot water systems.
Application Class: UNI EN ISO 21003
Maximum operating temperature: 70 °C
Maximum peak temperature: 95 °C
Maximum operating pressure: 10 bar
Thermal conductivity: 0,45 W/m K
Coefficient of linear expansion: 0,026 mm/m °C
Minimum radius of bending: 5 x D pipe
Pipe roughness: 7 μm
Water capacity: 0,11 l/m
Application: heating / sanitary systems
Construction:
• 1 - Inner PE-RT pipe layer
• 2 - Bonding layer connecting the inner pipe layer to the aluminium core
• 3 - Butt-welded aluminium core
• 4 - Bonding layer connecting the outer pipe layer to the aluminium core
• 5 - External PE-RT pipe layer
-
E28107004
-
0cm x 0cm x 0cm 0.000cm x 0.000cm x 0.000cm
-
0kg
-
Non insulated
-
16mm
-
2mm
-
-
-
R199.17
-
-
-
500m
-
Undefloor heating
No files found for this product.
